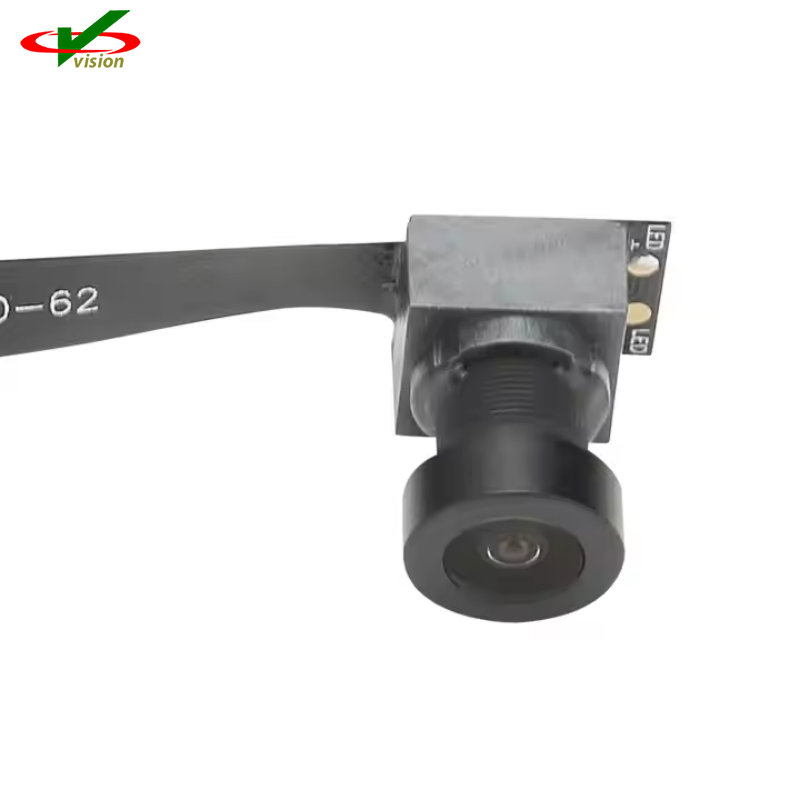

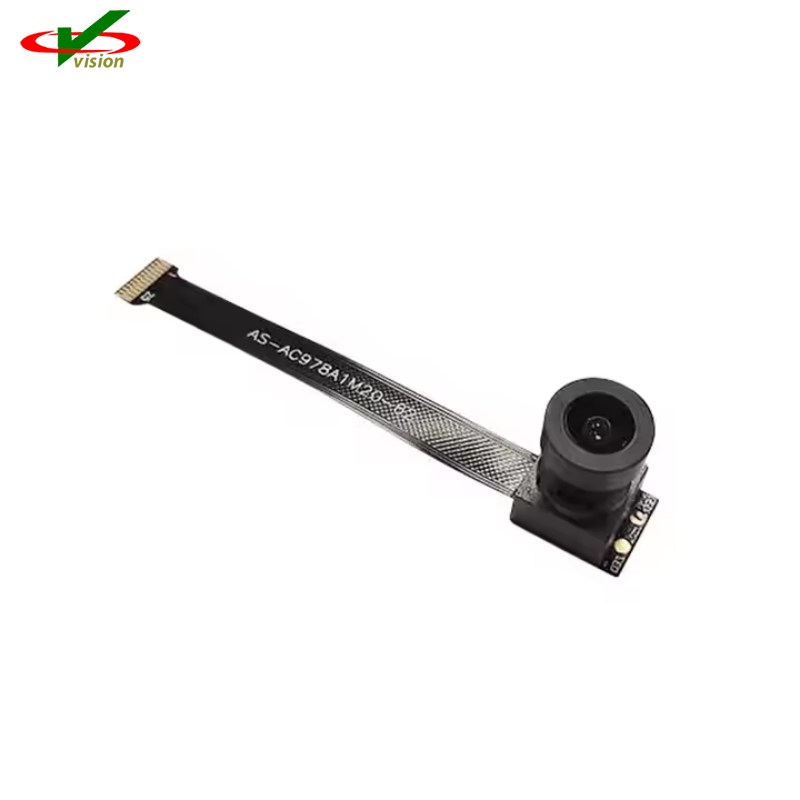

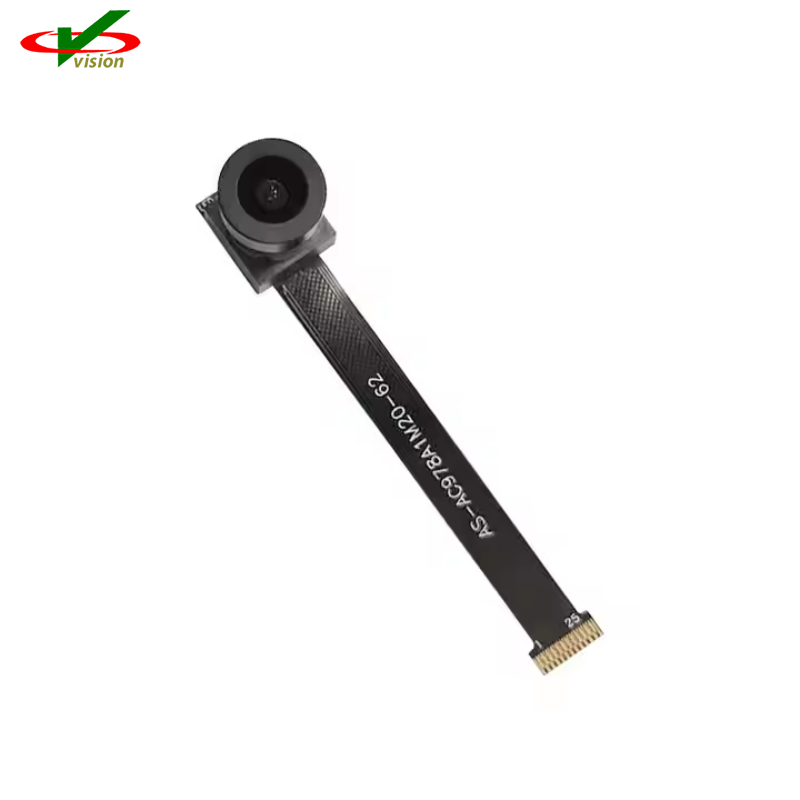

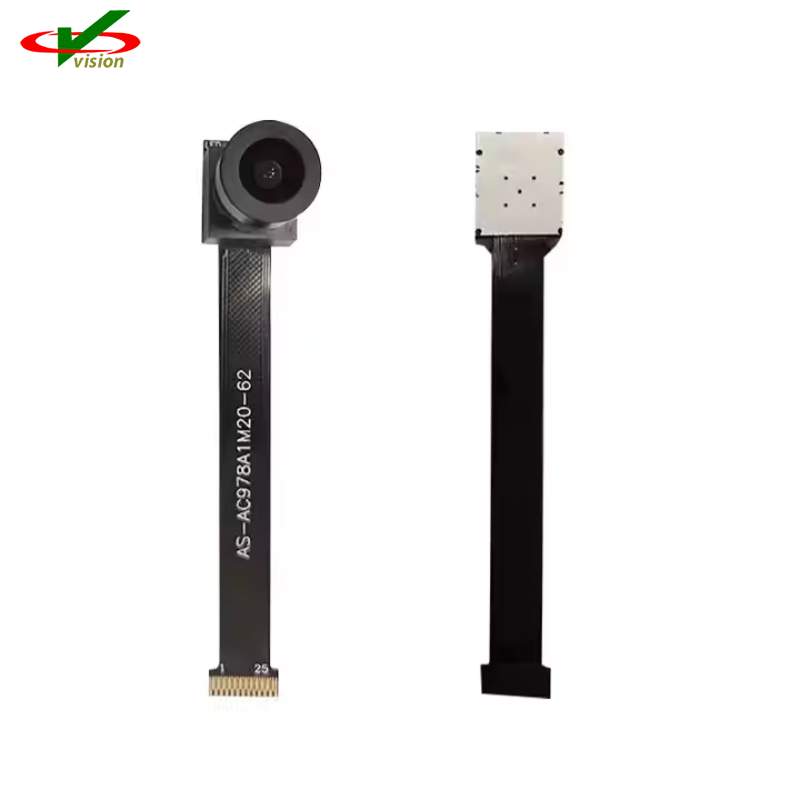

MIPI IMX179 IMX415 Module Camera

This MIPI IMX179 IMX415 Module Camera operates with three power supplies, analogue 2.7V, digital 1.2V, and 1F 1.8V, and has low power consumption. High sensitivity, low dark current, and no smear are achieved through the adoption of R,G, and B primary color pigment mosaic filters.

This MIPI IMX179 IMX415 Module Camera features an electronic shutter with variable charge-storage time.

OEM 8Mega Pixel MIPI IMX179 IMX415 Module Camera Features

◆CMOS active pixel type dots

◆2-wire serial communication circuit on chip

◆CSI2 serial data output

◆Timing generator, H and V driver circuit on chip

◆CDS/PGA on chip

◆10-bit A/D converter on chip

◆Automatic optical black(OB) clamp circuit on chip

◆PLL on chip(rectangular wave/sine wave)

◆High sensitivity, low dark current, no smear

◆Excellent anti-blooming characteristics

◆Variable-speed shutter function(1H units)

◆R,G,B primary color pigment mosaic filter on chip

◆Max. 30 frame/s in all-pixel scan mode

◆Pixel rate:>260MHz(>30 frame/s at All-pixel mode)

MIPI IMX179 IMX415 Module Camera Device Structure

◆CMOS image sensor

◆Image size: Diagonal 5.7mm(Type 1/3.2)

◆Total number of pixels: 3288(H) x 2515(V) approx. 8.26M pixels

◆Number of effective pixels: 3280(H) x 2464(V) approx.8.08M pixels

◆Chip size: 6.18mm(H) x 5.85mm(V)

◆Unit cell size: 1.4μm(H) x 1.4μm(V)

◆Substrate material: Silicon
