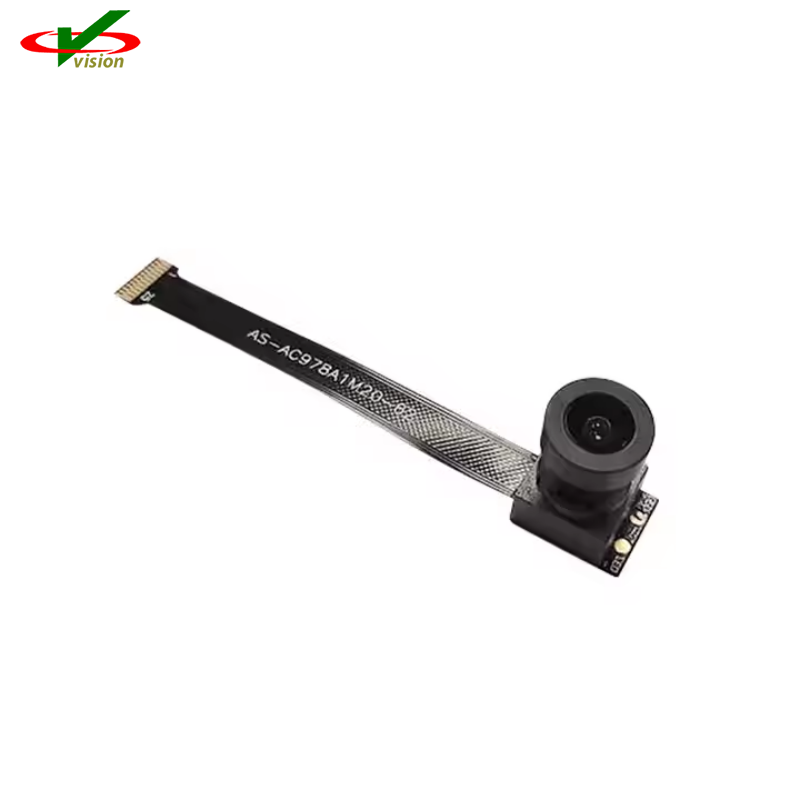

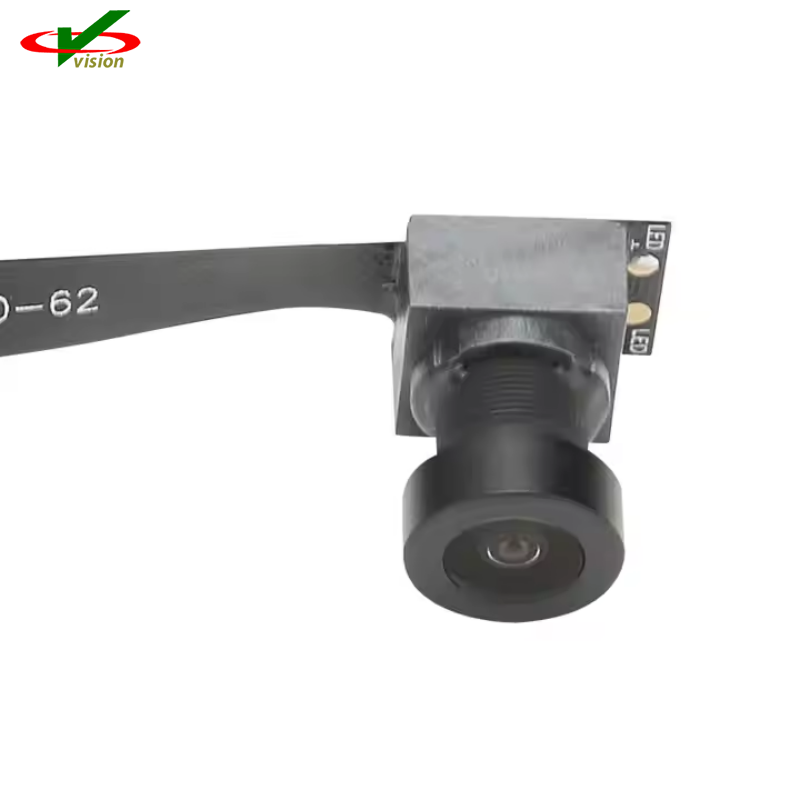

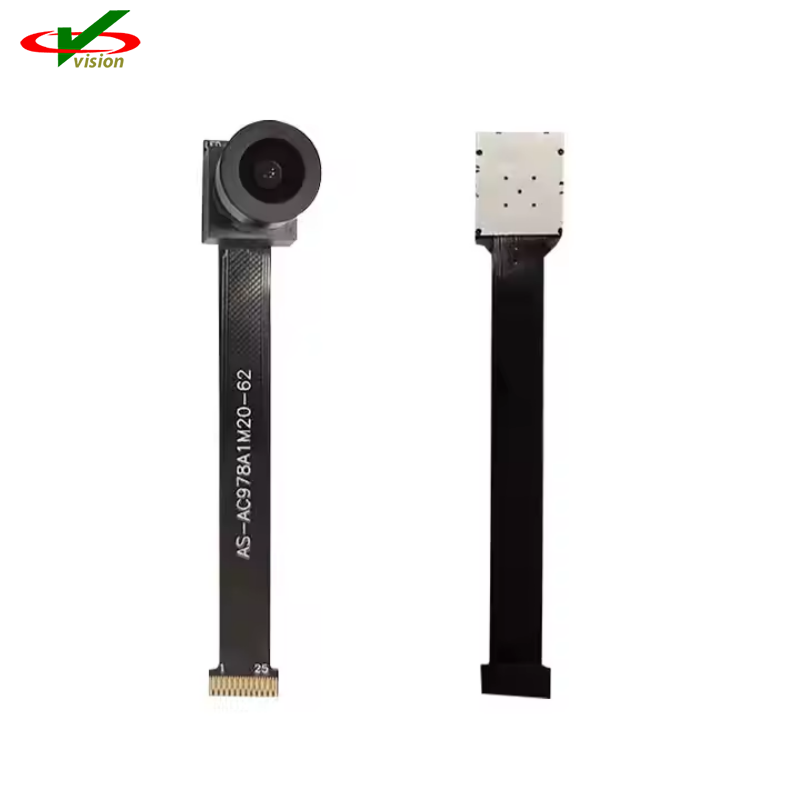

IMX179 IMX135 CSI MIPI Smartphone Camera Module

The IMX179 IMX135 CSI MIPI Smartphone Camera Module is a diagonal 5.7mm (type 1/3.2) CMOS active pixel type image sensor with a square pixel array and 8.08M effective pixels.

This chip features an electronic shutter with variable charge-storage time.

OEM 8MP IMX179 IMX135 CSI MIPI Smartphone Camera Module Features

◆CMOS active pixel type dots

◆2-wire serial communication circuit on chip

◆CSI2 serial data output

◆Timing generator, H and V driver circuit on chip

◆CDS/PGA on chip

◆10-bit A/D converter on chip

◆Automatic optical black(OB) clamp circuit on chip

◆PLL on chip(rectangular wave/sine wave)

◆High sensitivity, low dark current, no smear

◆Excellent anti-blooming characteristics

◆Variable-speed shutter function(1H units)

◆R,G,B primary color pigment mosaic filter on chip

◆Max. 30 frame/s in all-pixel scan mode

◆Pixel rate:>260MHz(>30 frame/s at All-pixel mode)

30Pin/36Pin OEM IMX179 IMX135 CSI MIPI Smartphone Camera Module Specifications

◆CMOS image sensor

◆Image size: Diagonal 5.7mm(Type 1/3.2)

◆Total number of pixels: 3288(H) x 2515(V) approx. 8.26M pixels

◆Number of effective pixels: 3280(H) x 2464(V) approx.8.08M pixels

◆Chip size: 6.18mm(H) x 5.85mm(V)

◆Unit cell size: 1.4μm(H) x 1.4μm(V)

◆Substrate material: Silicon
