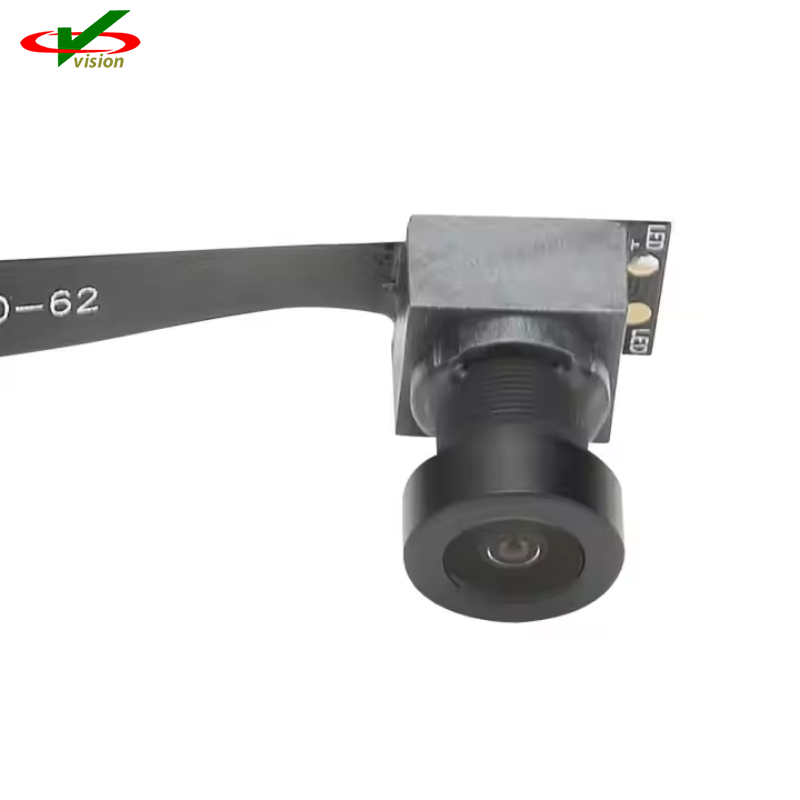

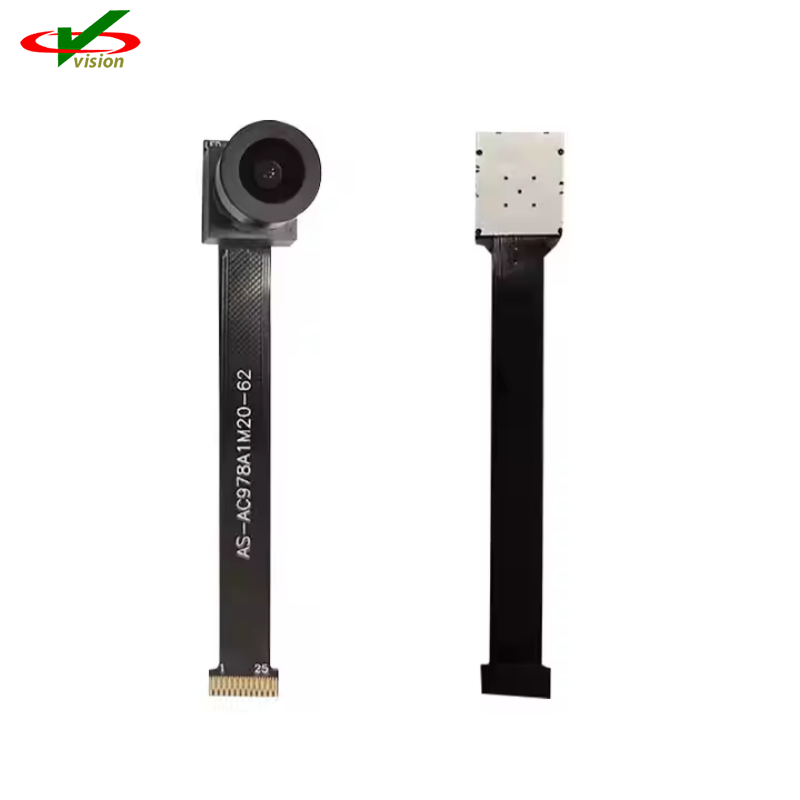

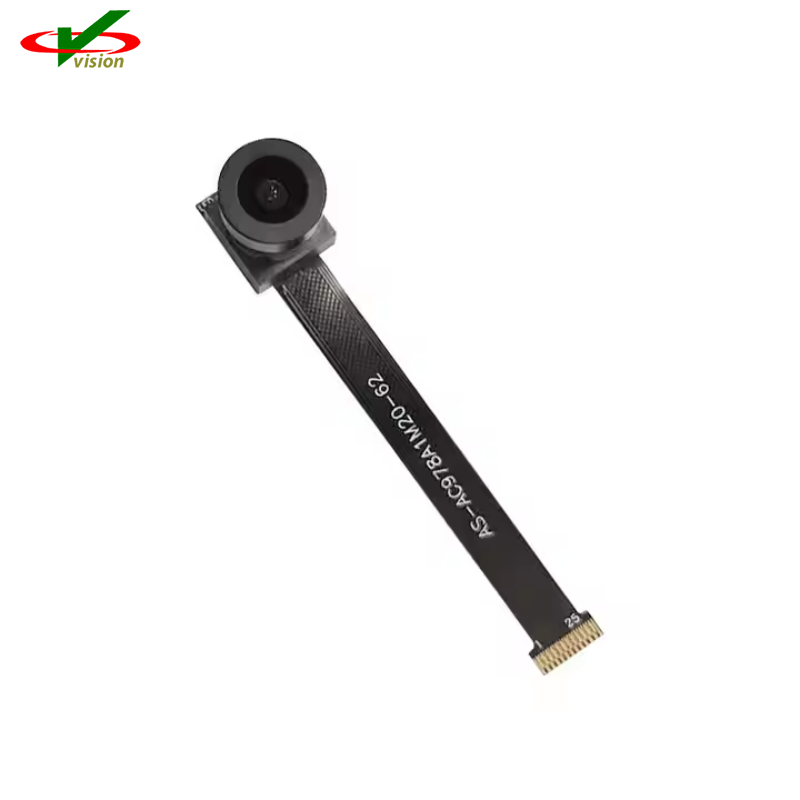

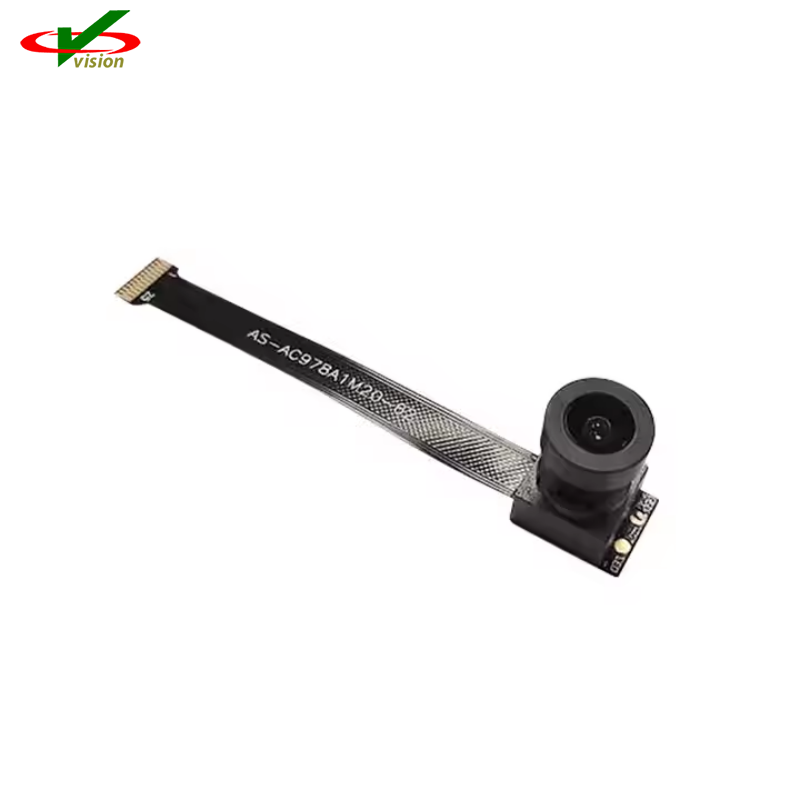

MIPI Aerial Drone Camera Module IMX179

The MIPI Aerial Drone Camera Module IMX179 is a diagonal 5.7mm (type 1/3.2)CMOS active pixel type image sensor with a square pixel array and 8.08M effective pixels.

This chip operates with three power supplies, analogue 2.7V, digital 1.2V, and 1F 1.8V, and has low power consumption. High sensitivity, low dark current, and no smear are achieved through the adoption of R,G, and B primary color pigment mosaic filters.

Customized MIPI Aerial Drone Camera Module IMX179 Specifications

◆CMOS image sensor

◆Image size: Diagonal 5.7mm(Type 1/3.2)

◆Total number of pixels: 3288(H) x 2515(V) approx. 8.26M pixels

◆Number of effective pixels: 3280(H) x 2464(V) approx.8.08M pixels

◆Chip size: 6.18mm(H) x 5.85mm(V)

◆Unit cell size: 1.4μm(H) x 1.4μm(V)

◆Substrate material: Silicon

MIPI Aerial Drone Camera Module IMX179 Features

◆CMOS active pixel type dots

◆2-wire serial communication circuit on chip

◆CSI2 serial data output

◆Timing generator, H and V driver circuit on chip

◆CDS/PGA on chip

◆10-bit A/D converter on chip

◆Automatic optical black (OB) clamp circuit on chip

◆PLL on chip (rectangular wave/sine wave)

◆High sensitivity, low dark current, no smear

◆Excellent anti-blooming characteristics

◆Variable-speed shutter function (1H units)

◆R, G, B primary color pigment mosaic filter on chip

◆Max. 30 frame/s in all-pixel scan mode

◆Pixel rate:>260MHz (>30 frame/s at All-pixel mode)
