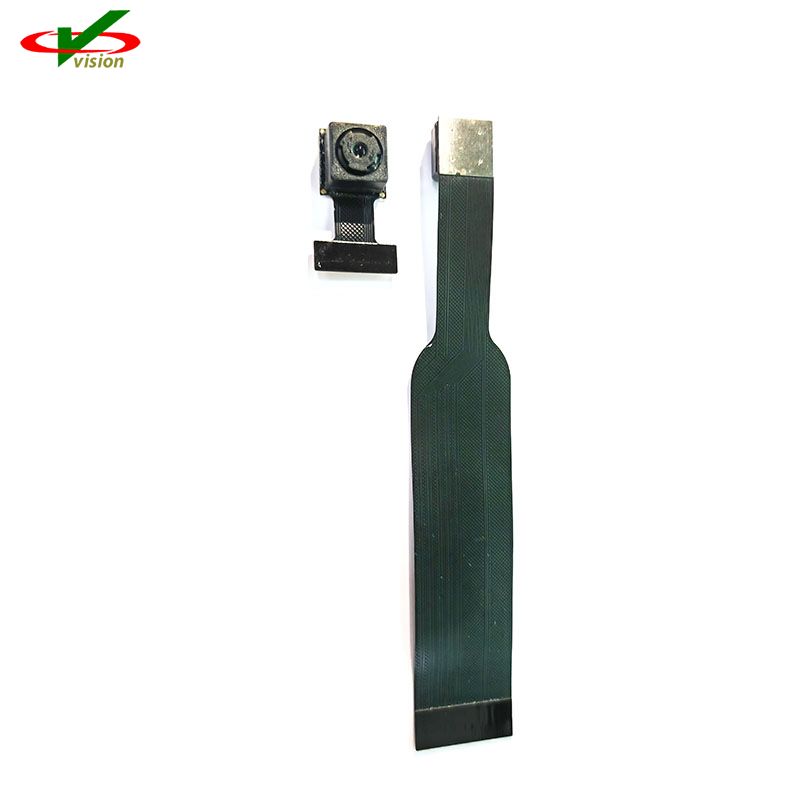

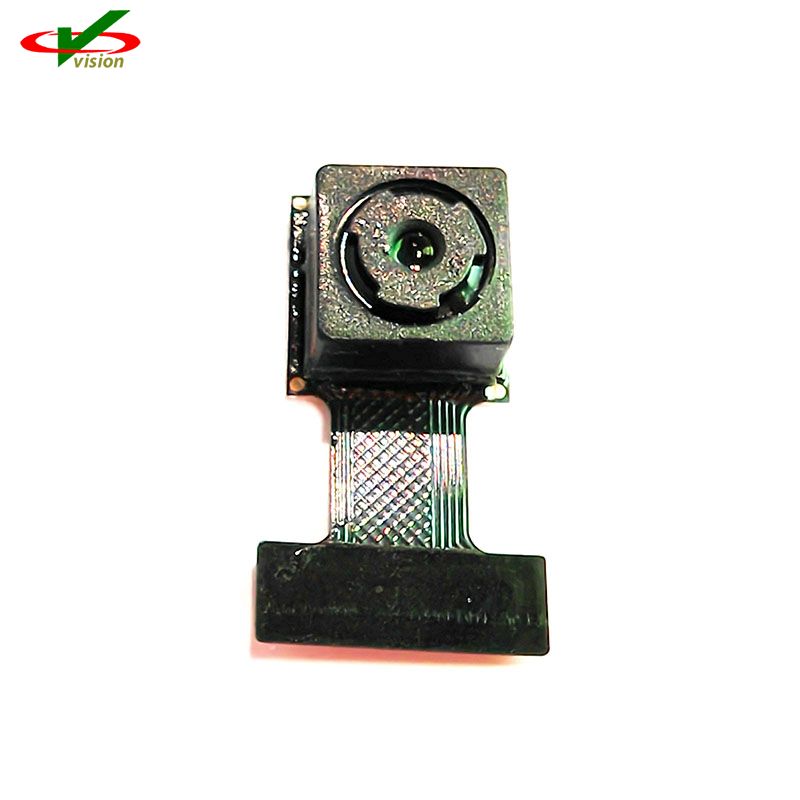

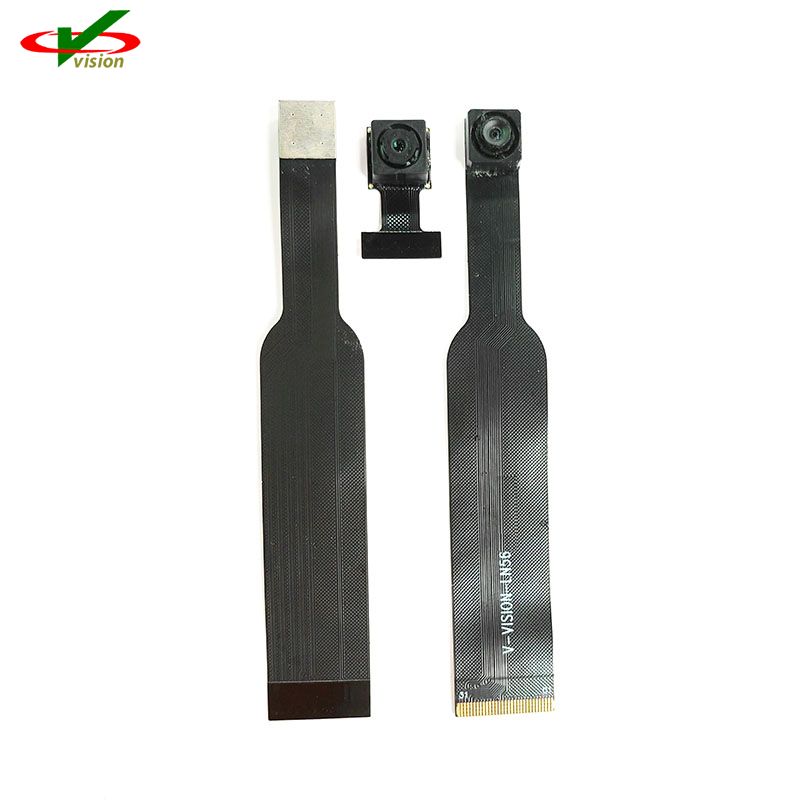

The 8MP OV8856 MIPI fixed focus camera is one ofthe smallest 8megapixel sensors on the market, and is approximately 15 percent smaller than Omnivision's previous generation ov8856 images sensor. The ov8856 can fit into a 6.5mmx6.5mm fixed focus module with a z-height of approximately 4mm.
Omnivision's 8MP OV8856 MIPI fixed focus camera is a new 1/4inch 8mega pixel PureCel sensor designed for front and rear facing camera applications in mainstream mobile devices.
Built on advanced 1.12-micron pixel architecture, the extremely compact 8MP OV8856 MIPI fixed focus camera offers industry-leading image quality and improved performance when compared with previous generation 8megapixel image sensors.
◆ cellular phones
◆ PC multimedia
◆ tablets
◆Active array size: 3264x2448
◆Power supply:
analog: 2.6~3.0V(2.8V nominal)
core: 1.14~1.26V(1.2V nominal)
I/O: 1.7~1.9V(1.8V)
◆ Power requirements:
active: TBD
standby: TBD
XSHUTDN: 0.3μW
◆ Temperature range:
operating: -30℃ to +85℃ junction temperature
stable image: 0℃ to +60℃ junction temperature
◆ Output interfaces: up to 4-lane MIPI serial output
◆ Output formats: 10-bit RGB RAW
◆ Lens size: 1/4"
◆ Input clock frequency: 6~27 MHz
◆ Maximum image transfer rate:
3264x2448: 30fps
3264x1836: 30fps
2112x1188: 60fps
1920x1080: 60fps
◆ Scan mode: progressive
◆ Pixel size: 1.12μm x1.12μm
◆ Image area: 3678.336μm x 2767.68μm
