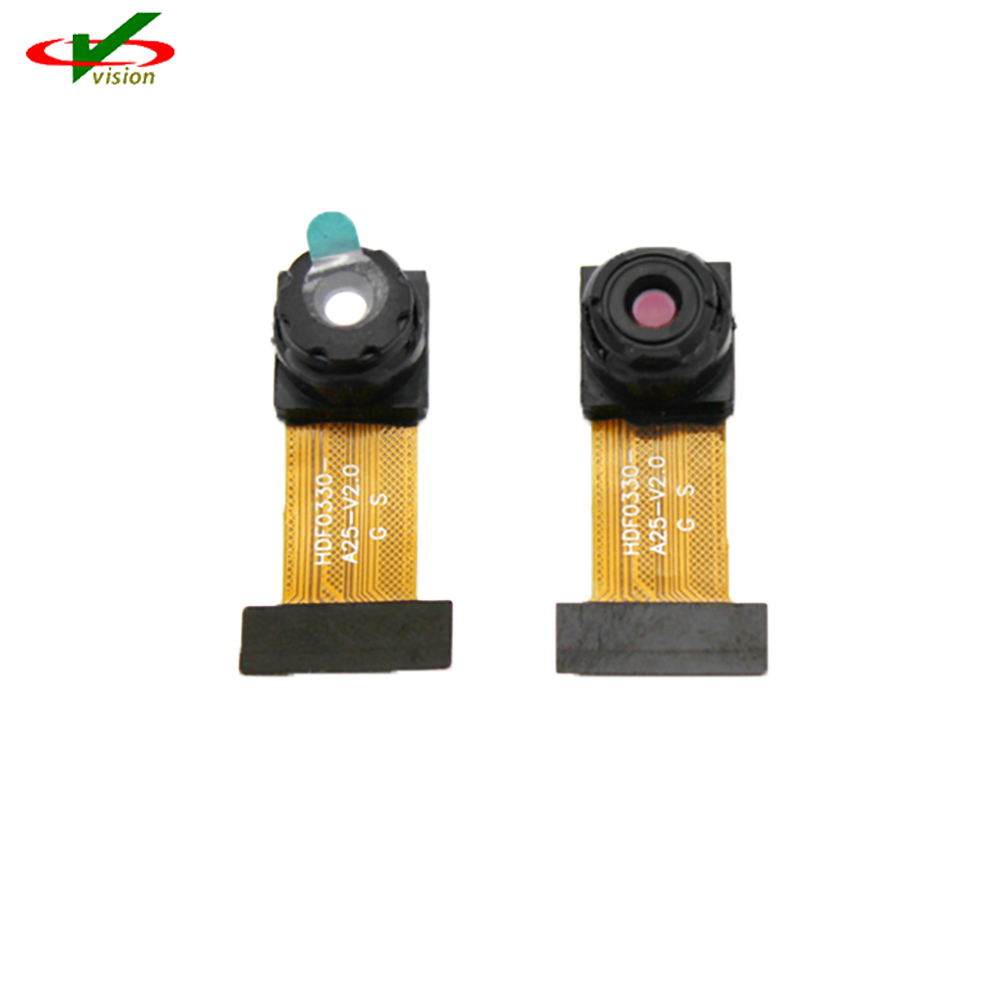

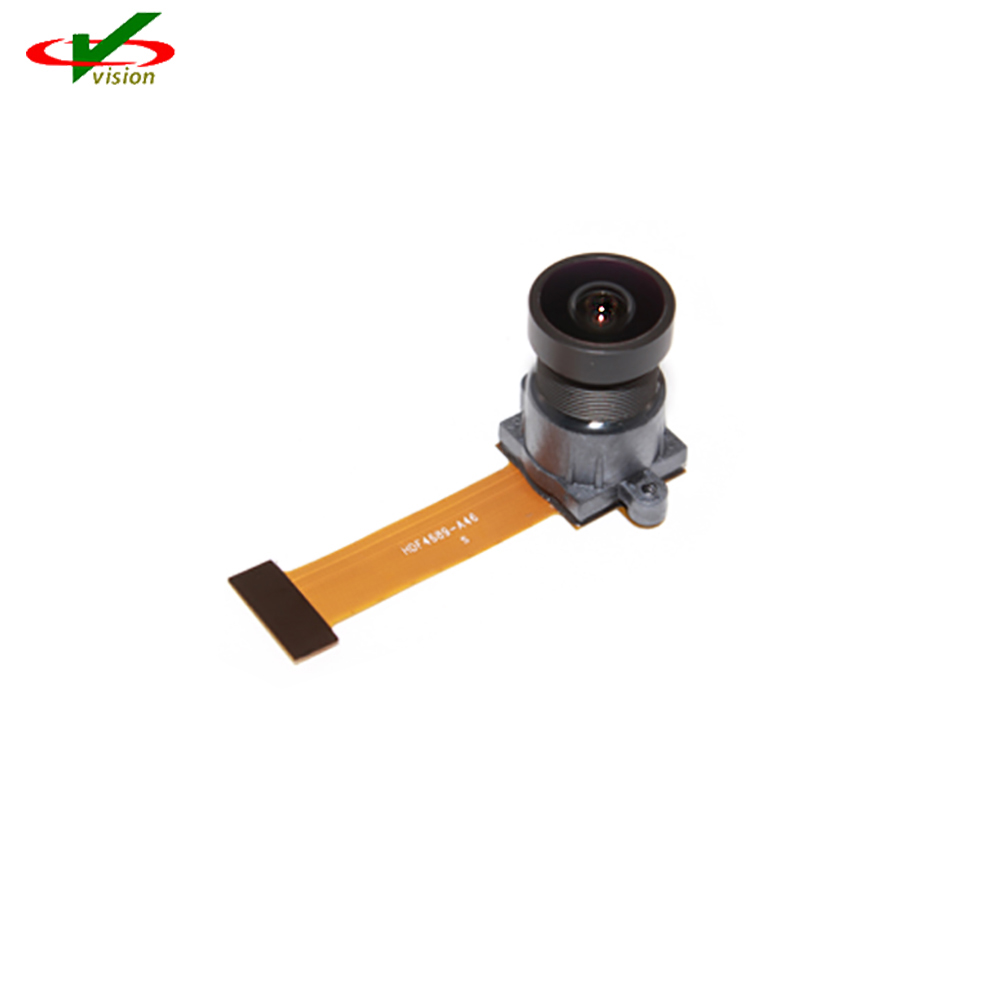

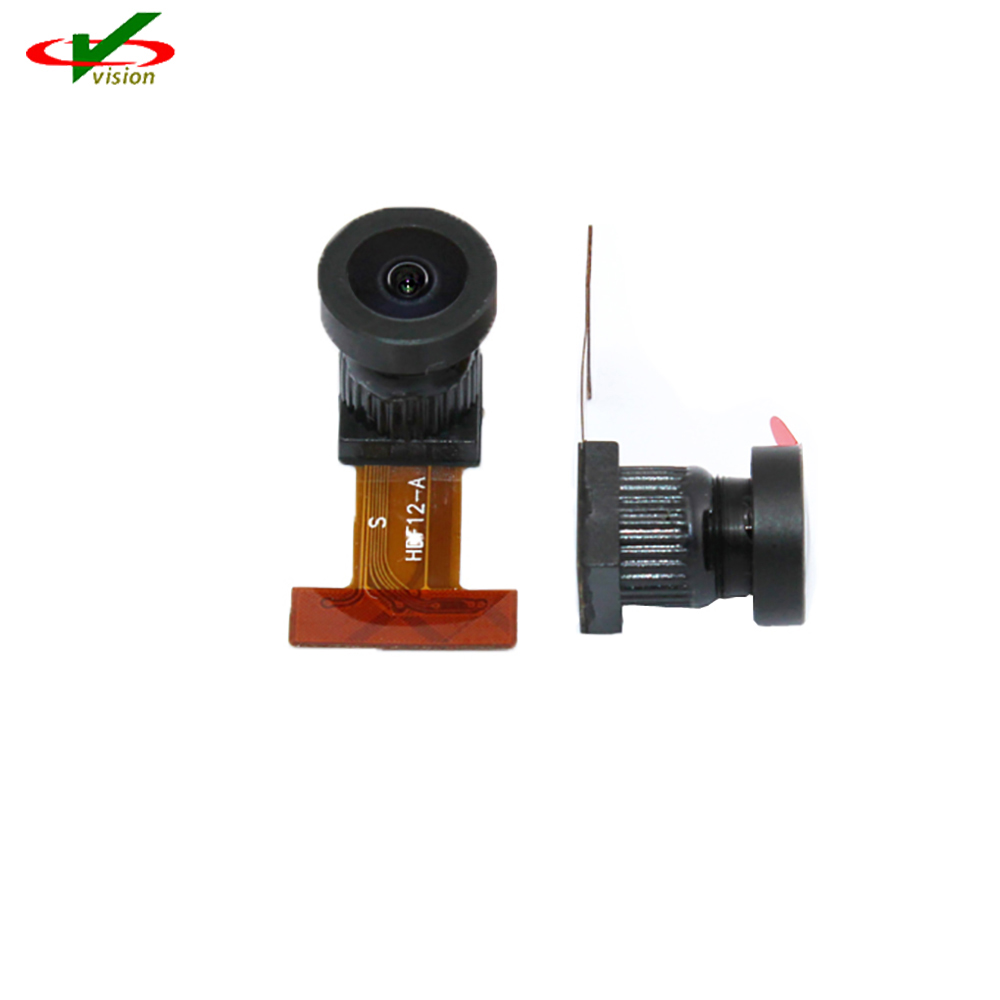

Camera Sensor Module MT9D111 GC2145 CMOS Module Camera is a 1/3.2 inch 2-megapixel CMOS image sensor with an integrated advanced camera system. The camera system features a microcontroller (MCU) and a sophisticated image flow processor (IFP) with a real-time JPEG encoder. It also includes a programmable general purpose I/O module (GPIO), which can be used to control external auto focus, optical zoom, or mechanical shutter.
The microcontroller manages all components of the camera system and sets key operation parameters for the sensor core to optimize the quality of raw image data entering the IFP.
The sensor core consists of an active pixel array of 1668 x 1248 pixels, programmable timing and control circuitry including a PLL and external flash support, analog signal chain with automatic offset correction and programmable gain, and two 10-bit A/D converters (ADC). The entire system-on-a-chip (SOC) has ultra-low power requirements and superior low-light performance that is particularly suitable for mobile applications.
| Parameter | Value | |
| Optical format | 1/3.2-inch(4:3) | |
| Full resolution | 1600x1200 pixel (UXGA) | |
| Pixel size | 2.8mx2.8m | |
| Active pixel array area | 4.73mmx3.52mm | |
| Shutter type | Electronic rolling shutter (ERS) with global reset | |
| Maximum frame rate |
15fps at full resolution, 30fps in preview mode, (800x600) |
|
|
Maximum data rate/ master clock |
80 MB/s 6 MHz to 80 MHz |
|
| Supply voltage | Analog | 2.5V-3.1V |
| Digital | 1.7V-1.95V | |
| I/O | 1.7V-3.1V | |
| PLL | 2.5V-3.1V | |
| ADC resolution | 10-bit,on-die | |
| Responsivity | 1.0/lux-sec(550nm) | |
| Dynamic range | 71dB | |
| SNR MAX | 42.3dB | |
| Power consumption | 348mW at 15 fps, full resolution | |
| 223mW at 30 fps, preview mode | ||
| Operating temperature | -30°C to +70°C | |
| Package | Bare die | |
• DigitalClarity™ CMOS imaging technology
• Superior low-light performance
• Ultra-low-power, low-cost
• Internal master clock generated by on-chip phaselocked loop oscillator (PLL)
• Electronic rolling shutter (ERS), progressive scan
• Integrated image flow processor (IFP) for single-die camera module
• Automatic image correction and enhancement, including lens shading correction
• Arbitrary image decimation with anti-aliasing
• Integrated real-time JPEG encoder
• Integrated microcontroller for flexibility
• Two-wire serial interface providing access to registers and microcontroller memory
• Selectable output data format: ITU-R BT.601 (YCbCr), 565RGB, 555RGB, 444RGB, JPEG 4:2:2, JPEG 4:2:0, and raw 10-bit
• Output FIFO for data rate equalization
• Programmable I/O slew rate
• Xenon and LED flash support with fast exposure adaptation
• Flexible support for external auto focus, optical zoom, and mechanical shutter
V-VISION provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, Sony, Samsung, Hynix, GalaxyCore... The main application areas: mobile phone,Digital Still Camera, laptop,DV, PDA/Handheld, Toy, PC Camera, Security Camera, Automotive Camera, tablet pc,the board, visual doorbell, medical system,smart home,industrial image recognition system, fingerprint identification system ...
Shenzhen V-Vision Technology Co.,Ltd is located in Shenzhen and is specialized in OEM camera module, with an experienced and professional team, we have exported our modules to many countries and regions all over the world, like North America,Mid East, Europe and Asia. Modules are well appreciated by their purchasers.
We always take "customers first, reputation first, feedback first" as our slogan. With strict quality control, we guarantee products quality and good price. We welcome customers, business associates and friends from all parts of the world to contact us and seek cooperation for mutual benefits. With good feedback from customers, we will build up a win-win business relationship with more and more customers from all over the world.
Our advantages:
1.14years R&D, producing and exporting experience. We have excellent design research and development personnel.
2.Strong design ability, if an off-the shelf product can't meet your critical needs, we can work with you to create a customized. solution optimized for your application.
3.Strict quality control system.
4.Punctual delivery.
5.Professional & considerate after service.
Our Service:
1.Fast reply your enquires with 24hours
2.Top of security equipment manufacturer and supplier
3.OEM/ODM welcome
4.Exclusive design, different for better products with competitive price
5.Strongly support technology and after-sale service
6.One year warranty
7.Fast delivery, always have the goods in our stock.
