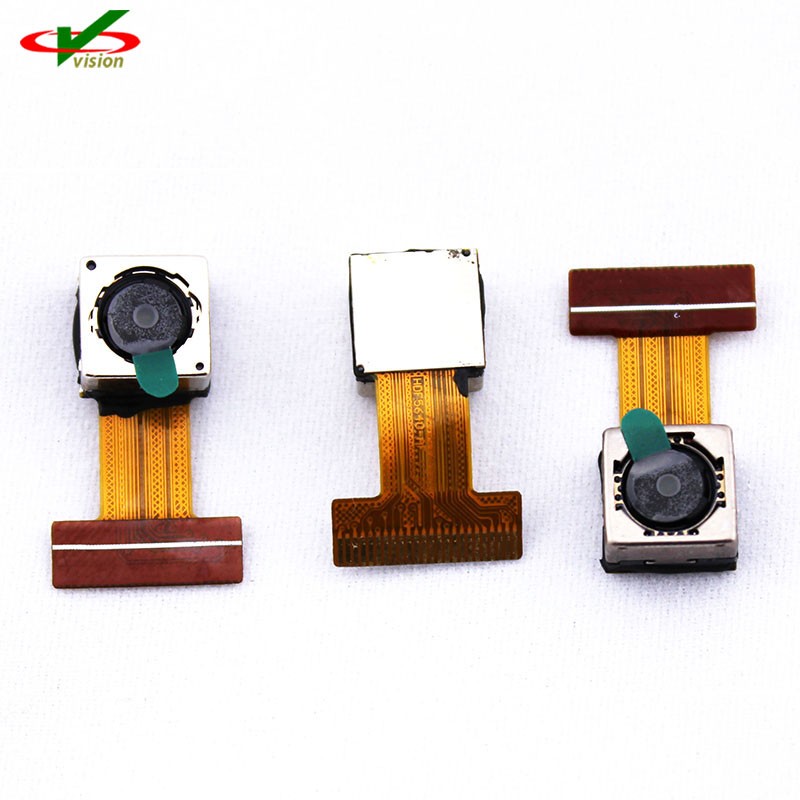

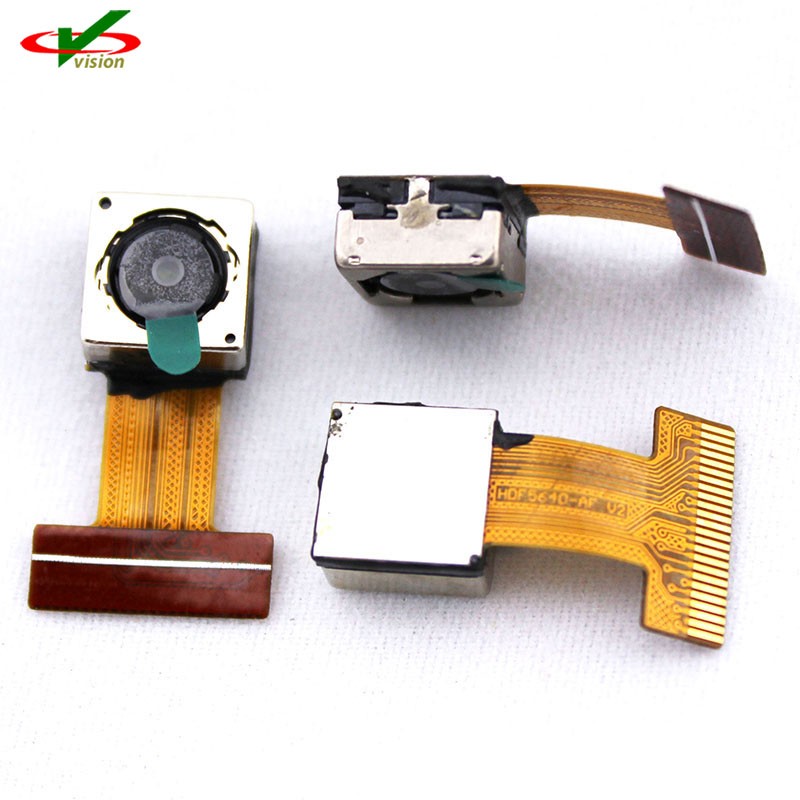

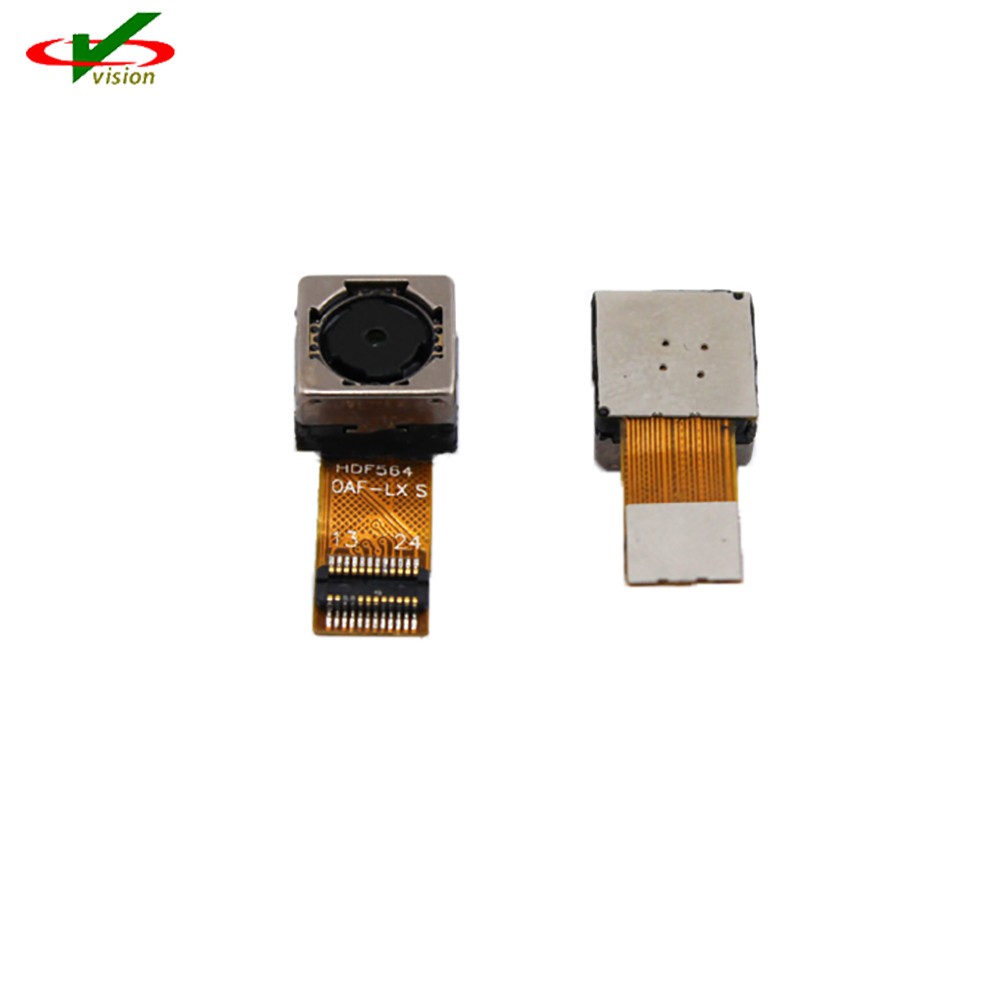

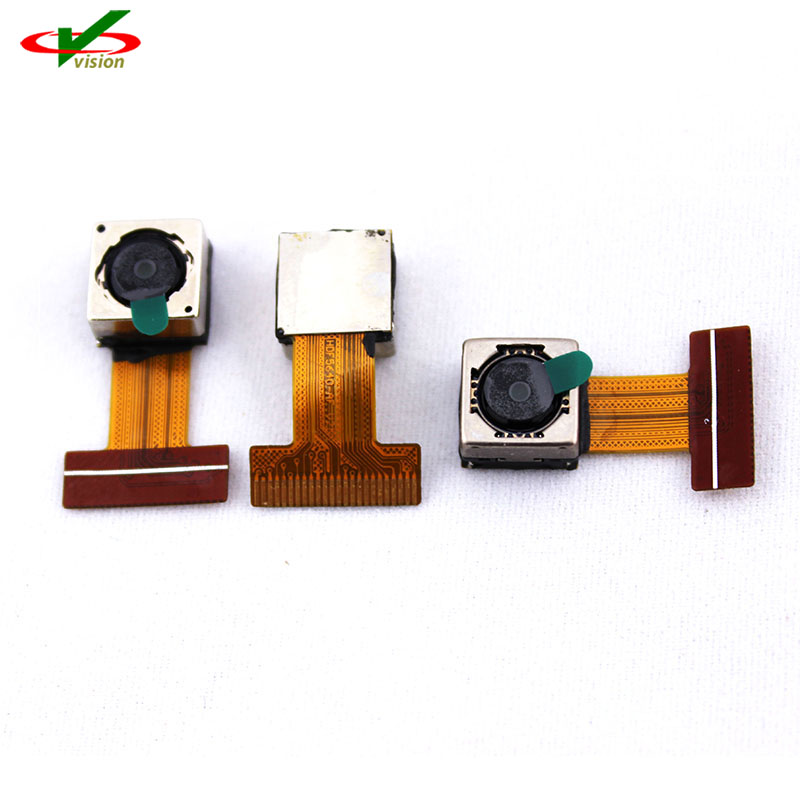

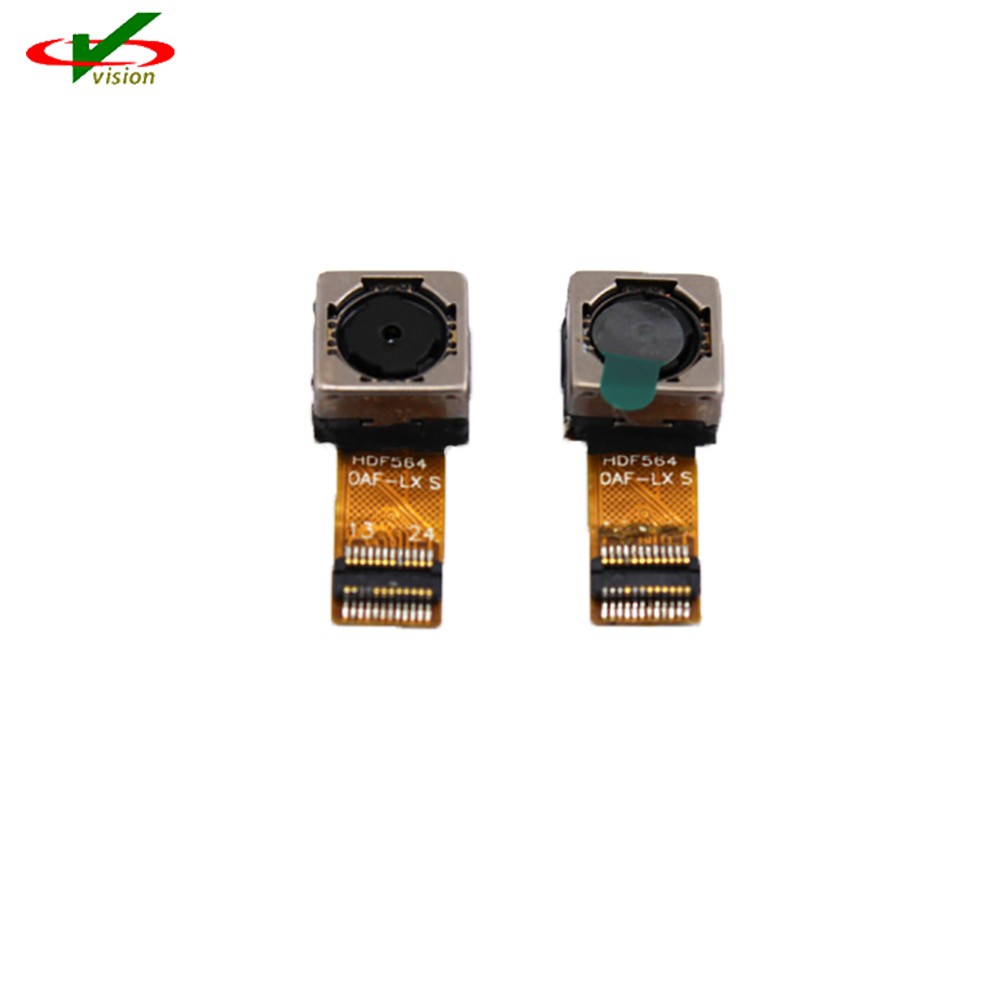

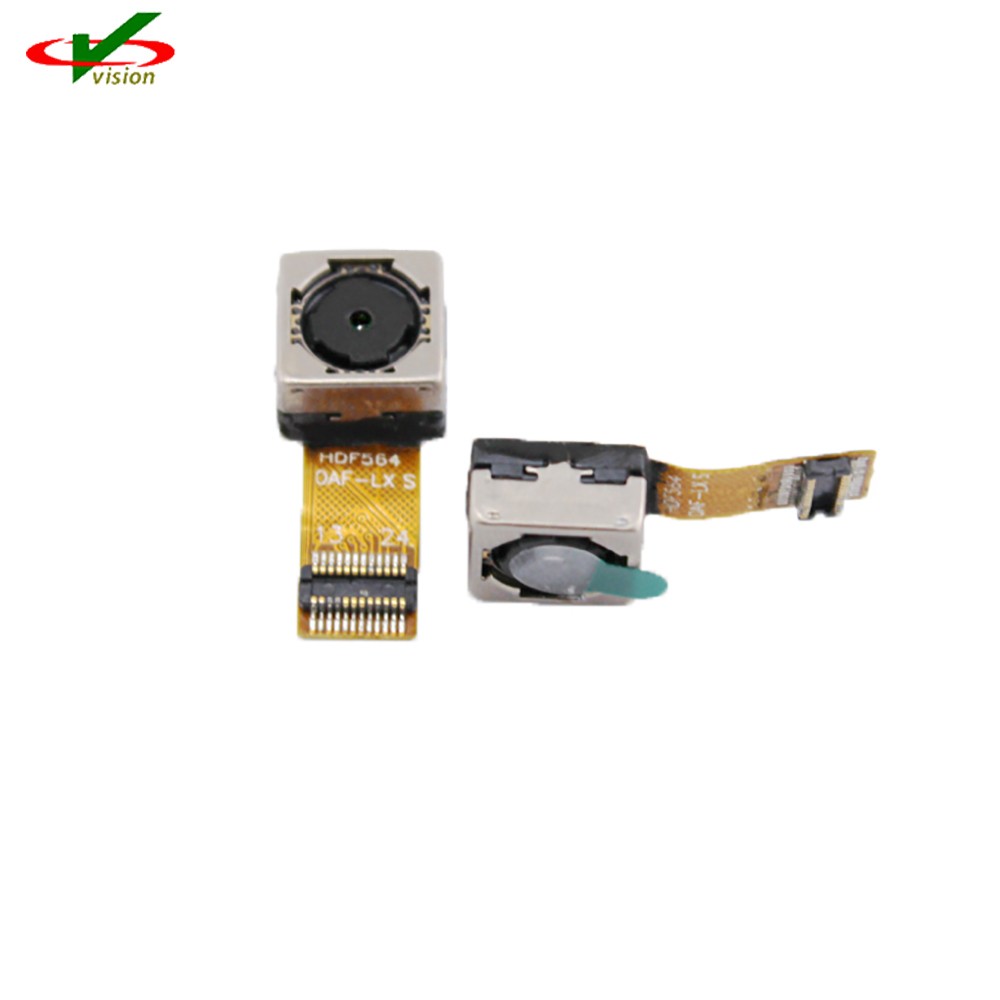

CMOS OV5640 Auto Focus Camera Module

We have made many ov5640 camera module with different types. Like auto focus ov5640 module, fixed focus ov5640 camera, and with different interface, DVP module and MIPI module. Please contact me soon so that i can provide complete ov5640 module details to you accordingly.

CMOS OV5640 Auto Focus Camera Module Key Specifications

Active array size: 2592 x 1944

Power supply:

core: 1.5V±5% (with embedded 1.5V regulator)

analog: 2.6 ~ 3.0V (2.8V typical)

I/O: 1.8V / 2.8V

Power requirements:

active: 140 mA

standby: 20uA

Temperature range:

operating: -30℃ to 70℃ junction temperature

stable image: 0℃ to 50℃  junction temperature

Output formats: 8-/10-bit RGB RAW output

Lens size: 1/4"

Lens chief ray angle: 24°

Input clock frequency: 6~27 MHz

Max S/N ratio: 36 dB (maximum)

Dynamic range: 68 dB @ 8x gain

Maximum image transfer rate:

QSXGA (2592x1944): 15 fps

1080p: 30 fps

1280x960: 45 fps

720p: 60 fps

VGA (640x480): 90 fps

QVGA (320x240): 120 fps

Sensitivity: 600 mV/Lux-sec

Shutter: rolling shutter / frame exposure

Maximum exposure interval: 1964 x tROW

Pixel size: 1.4um x 1.4um

Dark current: 8 mV/s @ 60℃  junction temperature

Image area: 3673.6um x 2738.4um

Package dimensions: 5985um x 5835um

CMOS OV5640 Auto Focus Camera Module Applications

Cellular phones

Toys

PC multimedia

Digital still cameras
