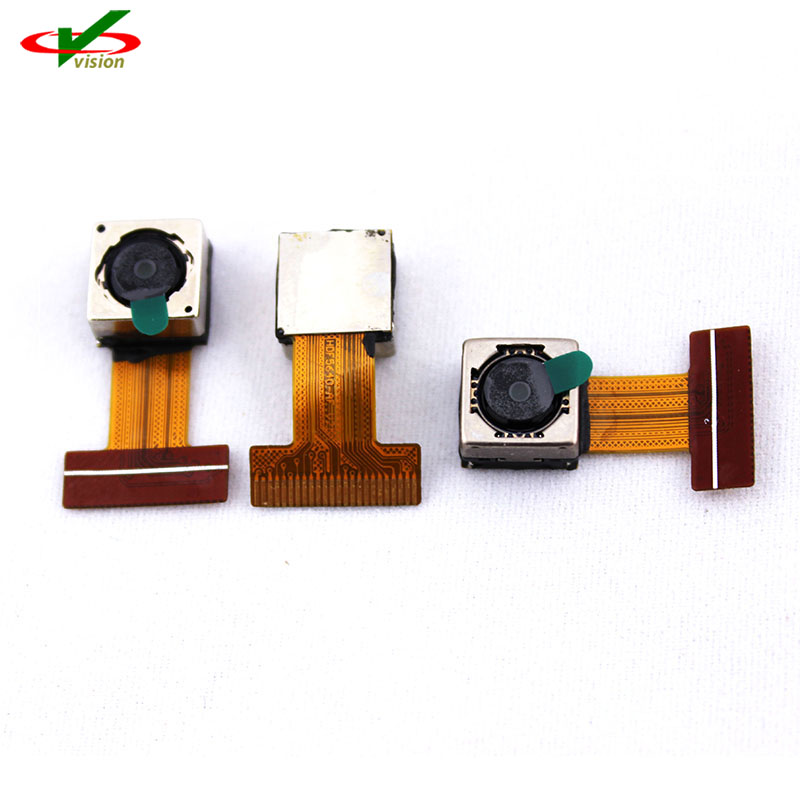

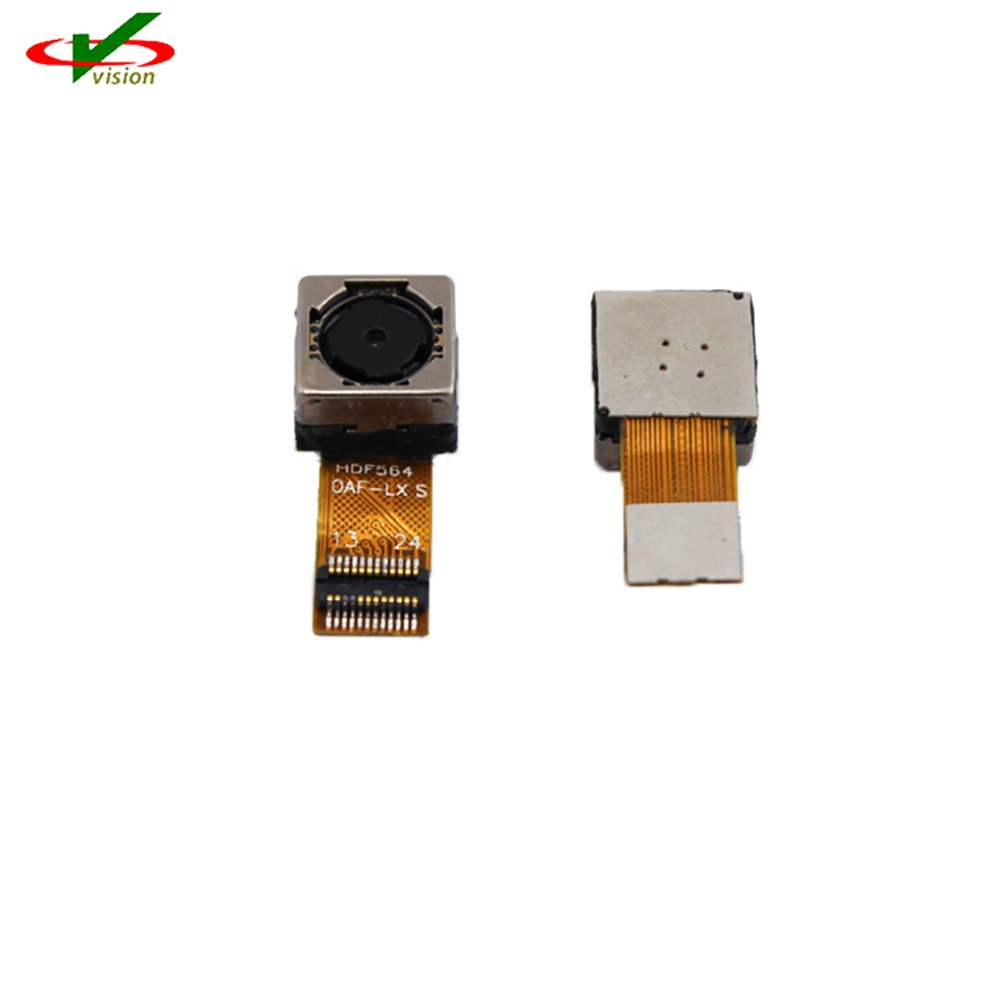

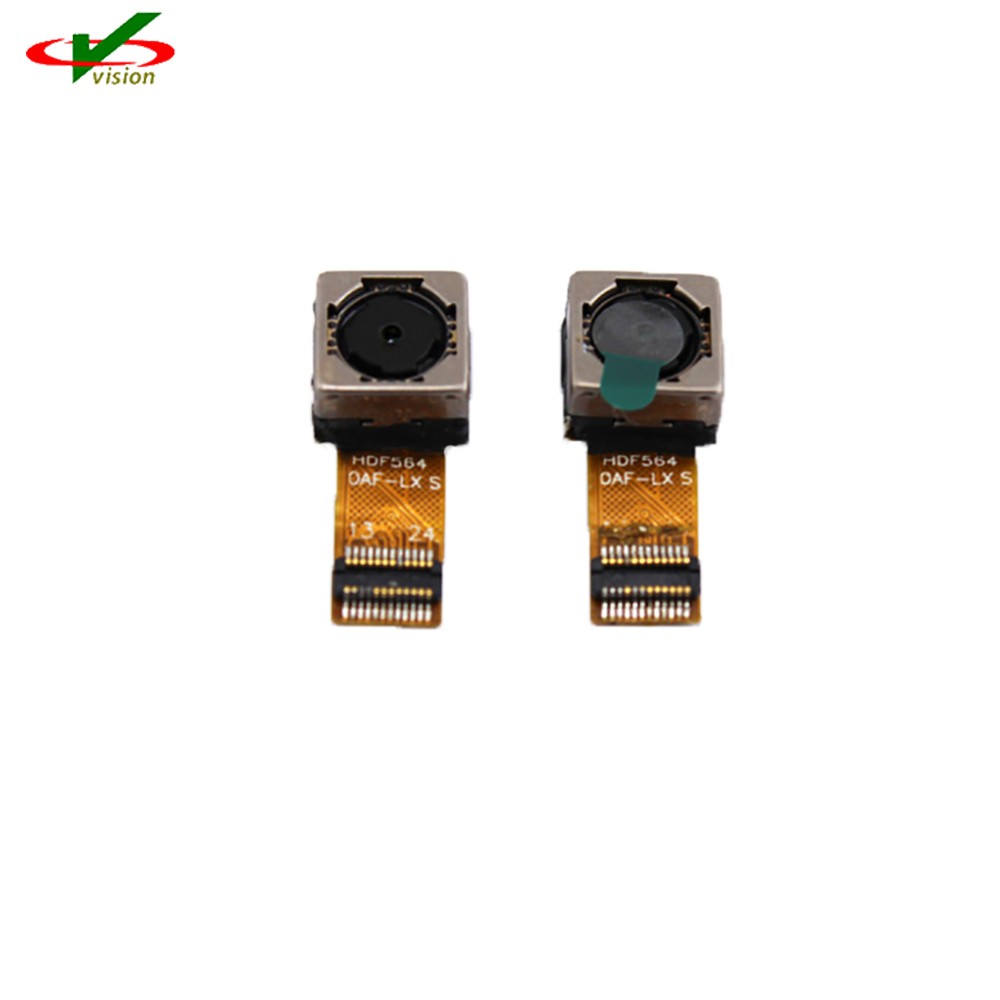

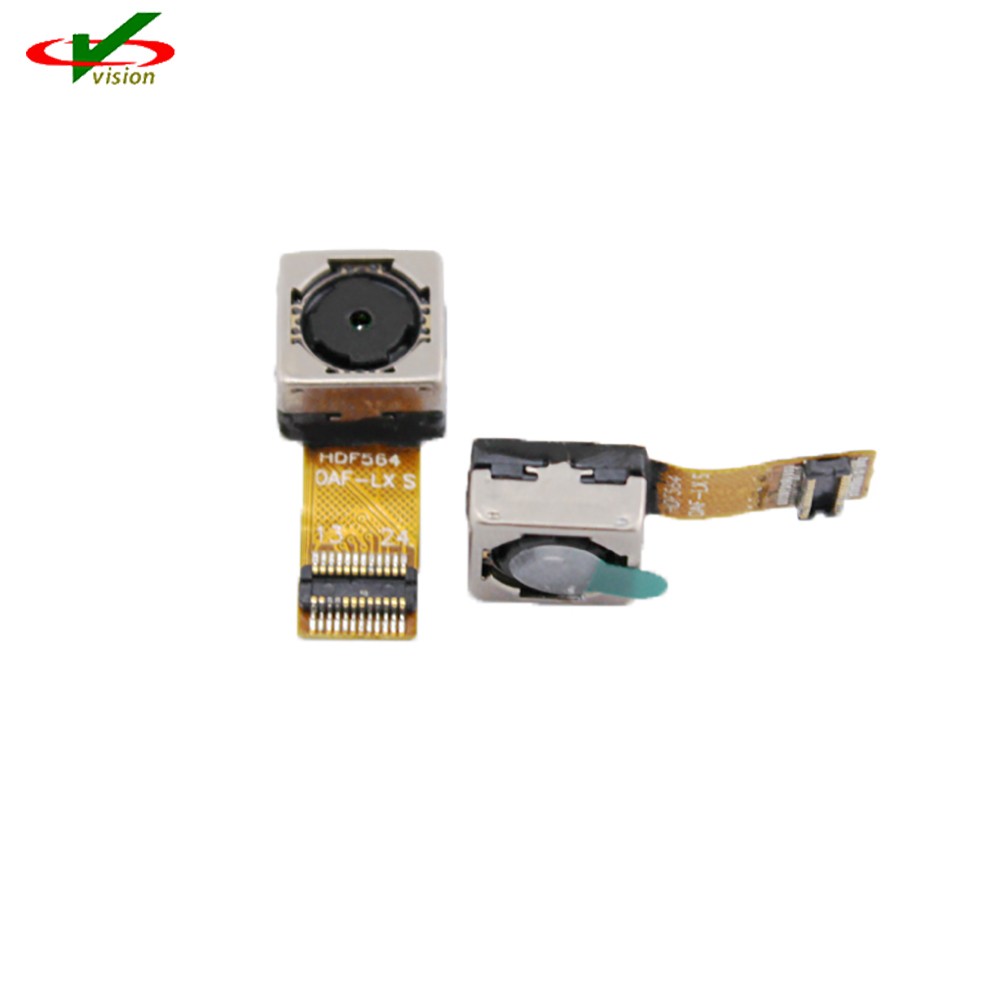

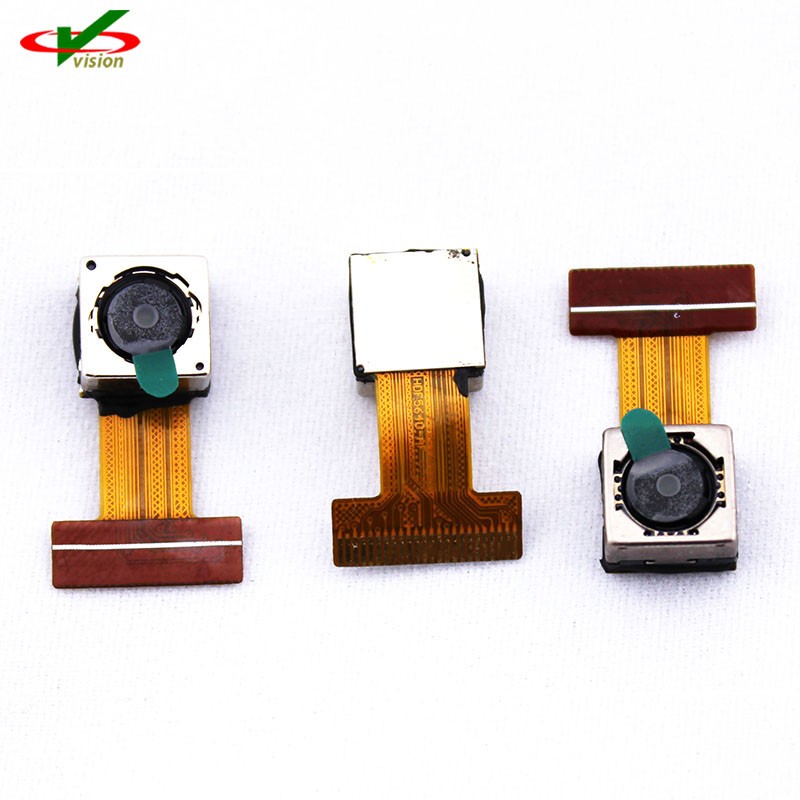

The Auto Focus OV5640 Camera Module delivers a complete 5-megapixel camera solution single chip, aimed at offering cost efficiencies that serve high volume autofocus(AF) camera phone market. We have made many ov5640 camera module with different types. Like auto focus ov5640 module, fixed focus ov5640 camera, and with different interface, DVP module and MIPI module. Please contact us soon so that we can provide complete ov5640 module details to you accordingly.
Cellular phones
Toys
PC multimedia
Digital still cameras
Active array size: 2592 x 1944
core: 1.5V±5% (with embedded 1.5V regulator)
analog: 2.6 ~ 3.0V (2.8V typical)
I/O: 1.8V / 2.8V
active: 140 mA
standby: 20uA
operating: -30℃ to 70℃ junction temperature
stable image: 0℃ to 50℃ junction temperature
Output formats: 8-/10-bit RGB RAW output
Lens size: 1/4"
Lens chief ray angle: 24°
Input clock frequency: 6~27 MHz
Max S/N ratio: 36 dB (maximum)
Dynamic range: 68 dB @ 8x gain
QSXGA (2592x1944): 15 fps
1080p: 30 fps
1280x960: 45 fps
720p: 60 fps
VGA (640x480): 90 fps
QVGA (320x240): 120 fps
Sensitivity: 600 mV/Lux-sec
Shutter: rolling shutter / frame exposure
Maximum exposure interval: 1964 x tROW
Pixel size: 1.4um x 1.4um
Dark current: 8 mV/s @ 60℃ junction temperature
Image area: 3673.6um x 2738.4um
Package dimensions: 5985um x 5835um
